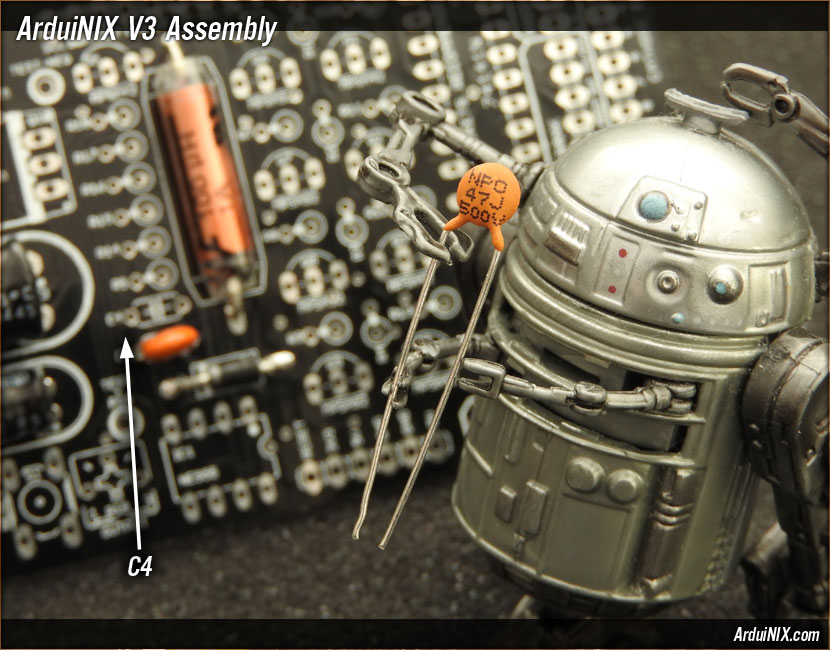

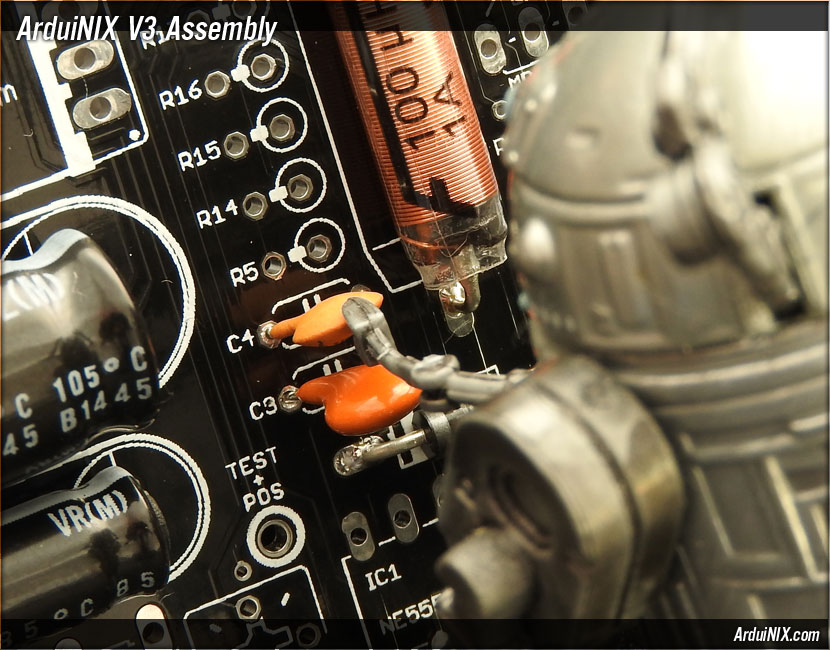

Step 6: C4 = 500V 47pF Capacitor

This capacitor can be placed in either direction, it is not polarized.
