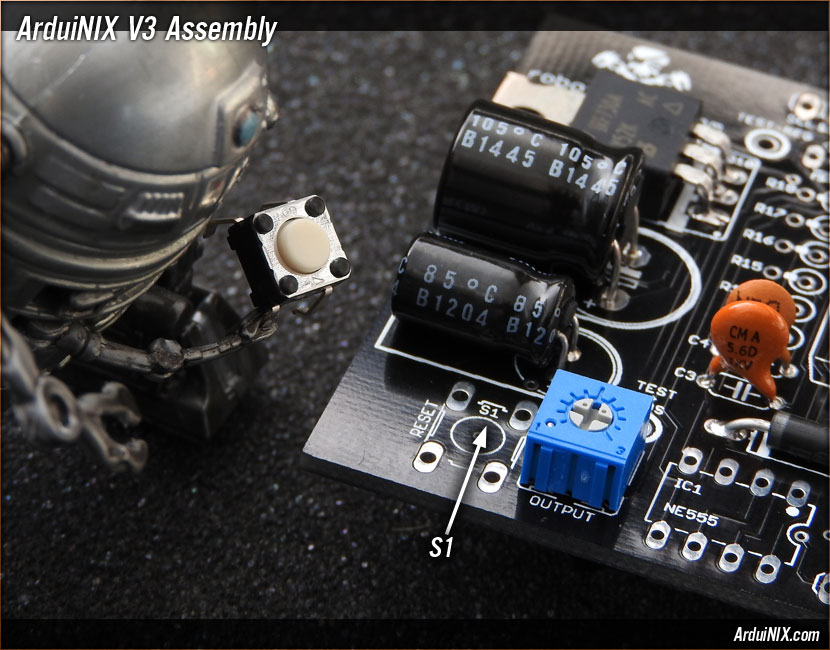

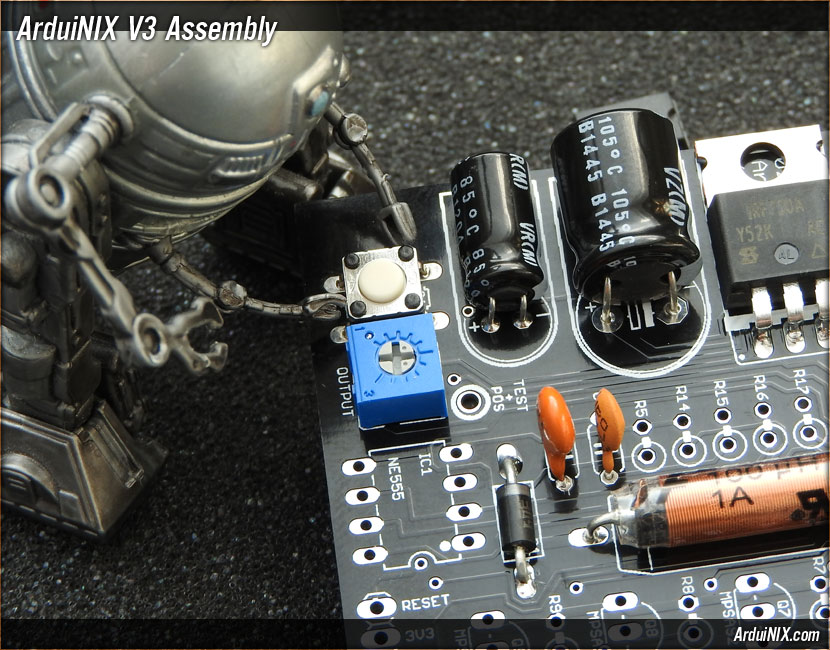

Step 9: S1 = Tactile Switch

The tactile switch tells the Arduino to reset the entire unit. If you prefer to have an external switch to reset the unit, you can solder wire leads between these points and your switch. You can also use the ground and reset leads located at the input/output breakout section of the board, near the cathodes.
