IN-12x6 Board Assembly Steps: 0 1 2 3 4 5 6 7 8

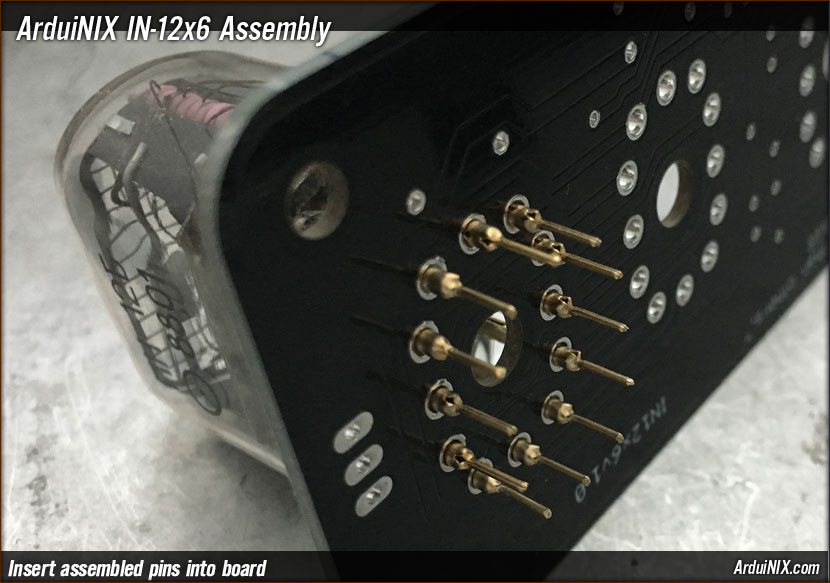

Step 2: Place assembled pins into board The pins may now be inserted into the board, using the tube's pins as alignment helpers to get them all soldered in straight. This makes sure the pins are aligned properly to the tube, and all at the right orientation and depth. |
 |
|
|
