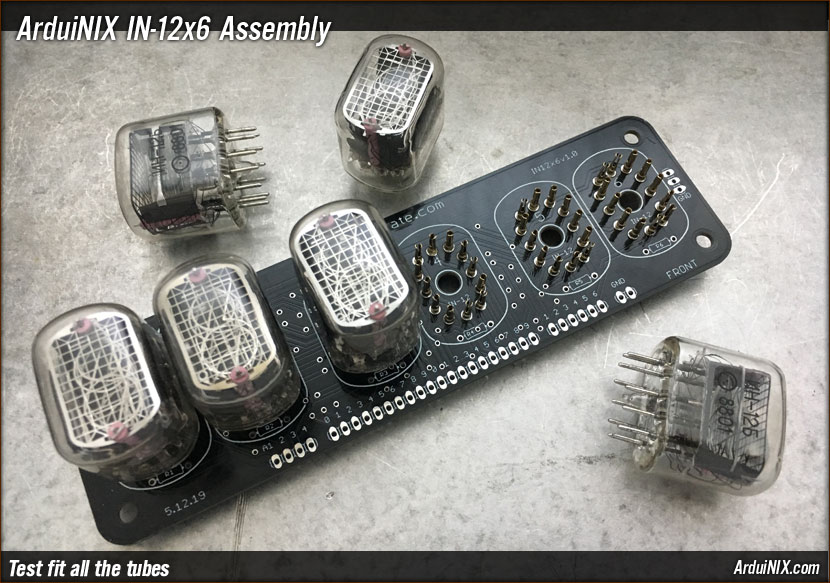

Step 5: Test fit all the tubes

If you have all the tubes test fit at the end of the pin socket soldering, remove them now to install the 10k resistors.
