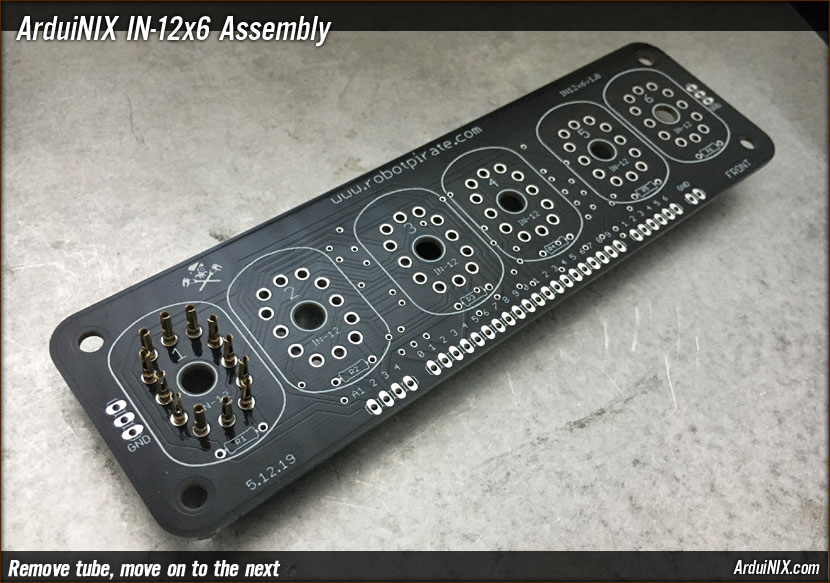

Step 4: Remove tube, inspect, move on to the next...

Once I have one set of pins installed, I remove the tube, inspect them, and begin the process again with the next tube, until I get all tube pin sets installed. Note the rotational orientation of the tube pin sockets. I try to make the split in the pin socket perpendicular to the center of the tube. This helps with tube pin alignment, and installing the tube, as errant or bent pins will want to split the pin socket out.
