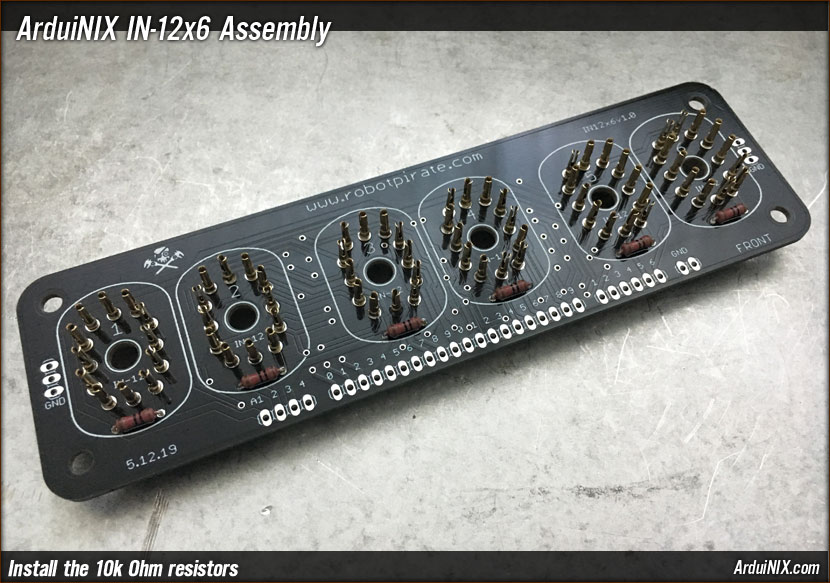

Step 6: Install 10K resistors in R1 through R6

At any point in this process the 10k resistors may be installed, but I like to do it after I get all the pin sockets in place.
